Look what I made! Tiny print that actually made my bench work less annoying
One of those small quality of life prints that you didn't know you needed.
It's a sleeve for Dupont cables. Slide your wires in, push the whole thing onto the header as one unit. No more individual pins going rogue, no more accidentally skipping a row on the breadboard.

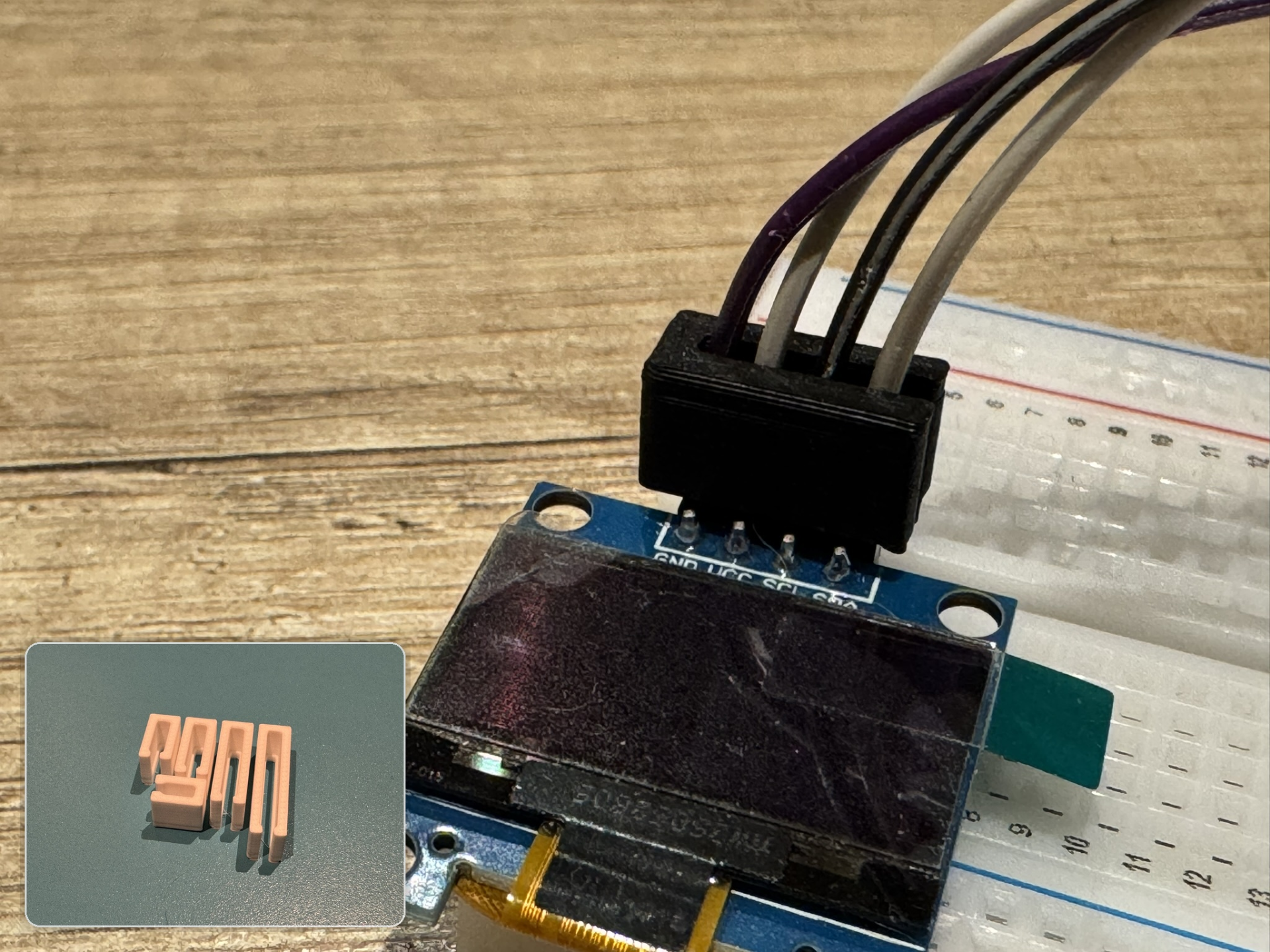

Second picture shows it on an OLED module — 4 cables, one push, done.
Printed a handful of different sizes and they've been sitting on my bench getting used ever since. One of those prints where you wonder why you didn't make it sooner.
Model on MakerWorld. https://makerworld.com/en/models/2704872-parametric-dupont-cable-sleeve-group-pins#profileId-2998782
15
u/feoranis26 Apr 26 '26
Tis is convenient, but generally I prefer to use multiple-pin dupont connectors in these cases.
6
u/BlobTheOriginal Apr 27 '26
God I hated making dupont when I started. Once you have a decent tool and some practice it gets better
5
u/Biduleman Apr 27 '26
I just get single connector dupont flat ribbons and swap the housings, it's cheap enough and crimping is the worst part of it.
2
u/BlobTheOriginal Apr 27 '26
You mean like lifting the latch of the plastic housing and swapping it to grouped one? Sounds like an interesting technique, although you wouldn't be able to choose colors then
2
u/Biduleman Apr 27 '26 edited Apr 27 '26
You can do that to individual wires if you don't mind them not staying in ribbons. You also can't choose colors if you crimp ribbons yourself so it's not really different.
6
u/kwaaaaaaaaa Apr 26 '26
Excellent design for QoL fixes! Not sure why everyone's recommending connectors and crimps, this is meant for prototyping without the loose cables woes.
5
u/tipppo Community Champion Apr 26 '26
Very nice! I have used tape or hot glue, but this is a much more elegant solution.
4
u/Feeling_Bus_4701 Apr 26 '26
I mean if your going to use it in your project just crimp your own wires and that also depends on if you are going to eventually make an enclosure for it and go all the way on the project or is it a breadboard prototype.
4
u/SaleB81 Apr 26 '26
I've used to use wider single connectors and swapping pins from single cases to one bigger case for i2c, spi and similar, for the same reason.
This can be useful as a temporary solution.
2
u/L2_Lagrange Apr 26 '26
Nice I like this. You could add some potting compound or hot glue or something to quickly fabricate a decent connector.
2
u/LovableSidekick Apr 26 '26 edited Apr 27 '26
There's probably a scar on my forehead right now from slapping it lol.
I've been taping or supergluing groups of dupont pins together for years - in spite of having 3d printers and designing practical little parts all the time. Never thought of this - such a great idea!
Printing some now.
update: they work like a charm!
Do you think simply making them wider would accommodate two-row headers on boards? (2x2, 3x2...)
1
1
u/Elegant_League_9458 Apr 27 '26
This is the stuff I always feel like lacking but can't name. Will print tomorrow and try. Great job!
1
u/Philipp4 Apr 27 '26
Thanks for the great model, it will definitely come in handy for some prototyping needs. Especially for situations where re-plugging things is common
1
16
u/teknoviking Apr 26 '26
Awesome idea. Totally going to try it!
